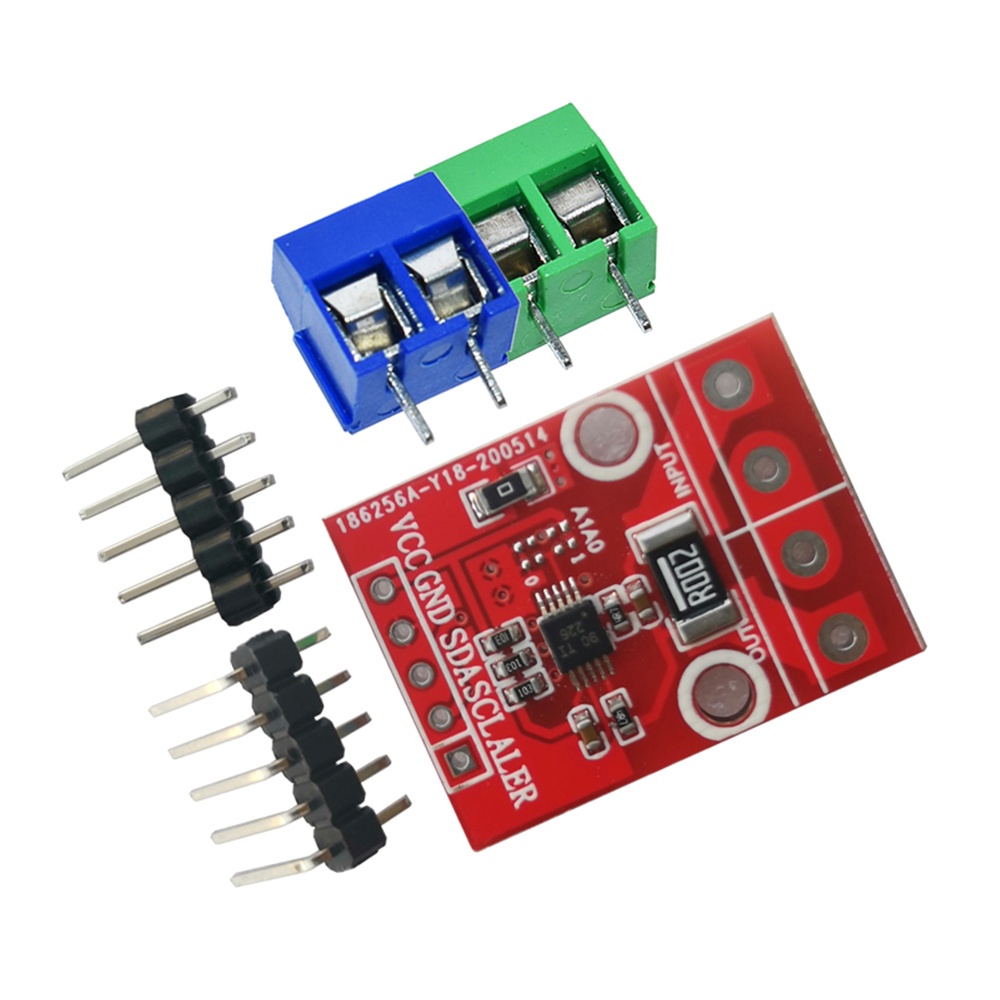

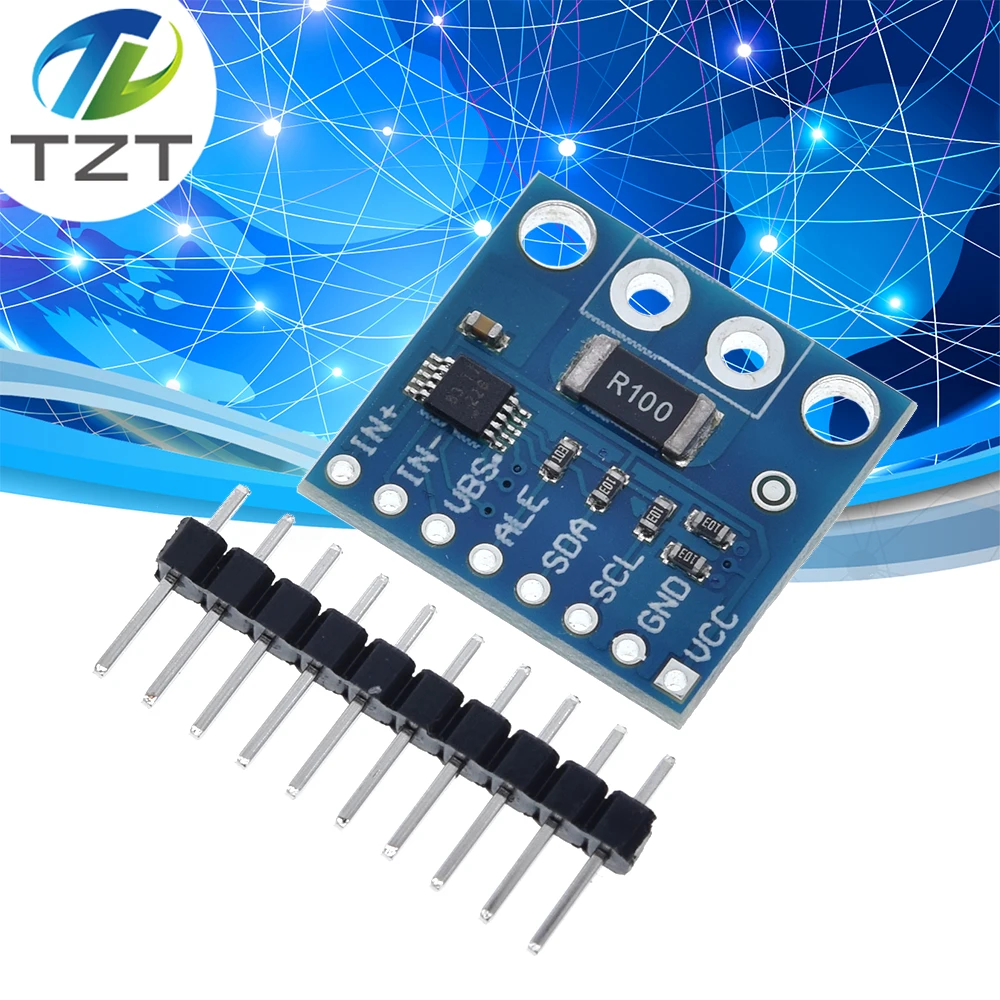

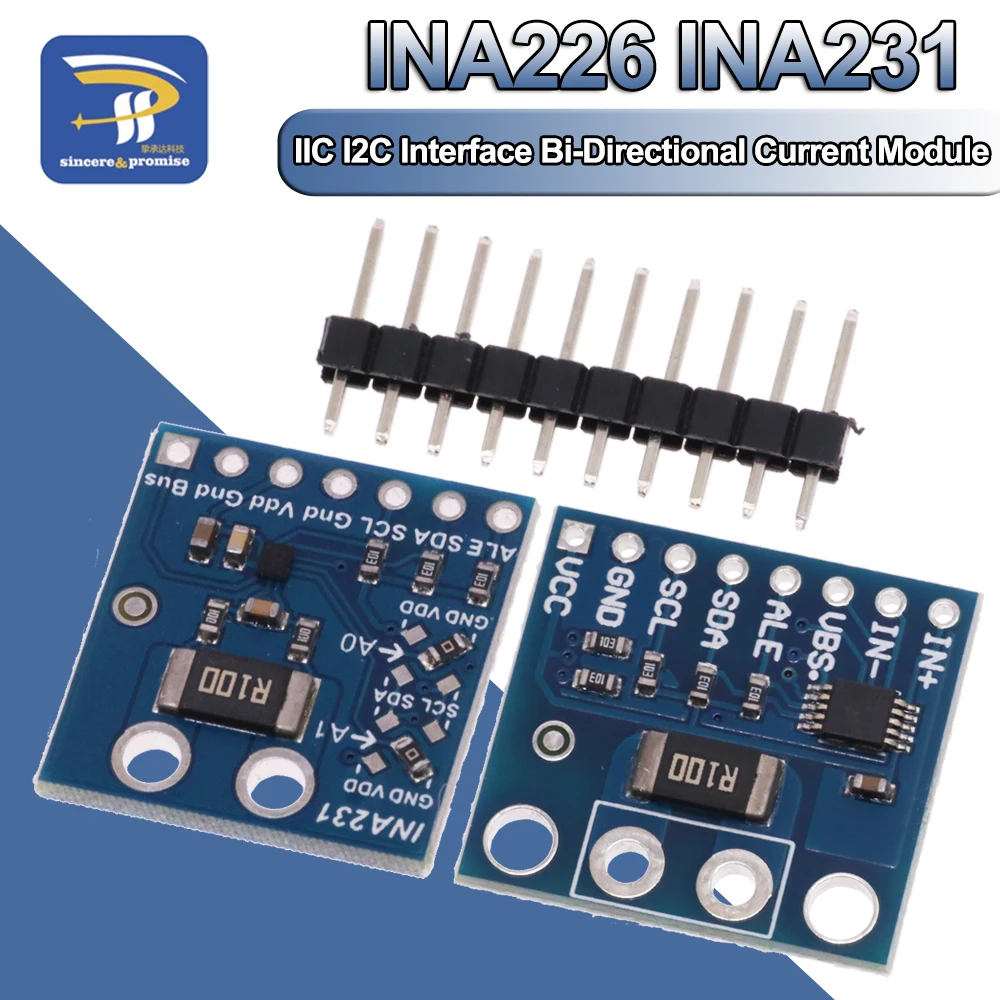

INA226 Bi-directional Current/Power Monitoring Sensor Module

Features: Voltage: 0-36 V Reports Current, Voltage, and Power High Accuracy: 0.1% Gain Error (Max) 10 μV Offset (Max) Configurable Averaging Options 16 Programmable Addresses Operates from 2.7-V to 5.5-V Power Supply 10-Pin, DGS (VSSOP) Package Pin out: VBUS: bus voltage input SDA/SCL: IIC bus data and clock signal lines ALERT: Multi-function alarm output A0/A1: IIC address line IN+/IN-: non-inverting analog input, inverting analog input Description: The INA226 is a current shunt and power monitor with an I2C or SMBUS compatible interface. The device monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts. The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. INA226 IIC I2C Bi-Directional Current Monitoring Sensor Can be applied to Servers, Telecom Equipment, Power Management, Battery Chargers and Power Supplies High accuracy, 16 programmable addresses, 10-Pin, DGS (VSSOP) Package
